Specification
Perfect for precision-focused industries.
High radial and axial load capacity.
Designed for optimal performance in heavy machinery.
Specification | Bearing type | Principal dimensions | Basic load ratings | Reference weight(kg) | ||||||||
| New | Original | (mm) | (KN) | (KN) | |||||||
| Type | Type | d | D | T | B | C | R | r | Cr | Cor | W |
| 32305 | 7605E | 25 | 62 | 25.25 | 24 | 20 | 1.5 | 1.5 | 61.6 | 68.8 | 0.368 |
| 32306 | 7606E | 30 | 72 | 28.75 | 27 | 23 | 1.5 | 1.5 | 81.6 | 96.4 | 0.560 |
| 32307 | 7607E | 35 | 80 | 32.75 | 31 | 25 | 2 | 1.5 | 99 | 118.3 | 0.763 |
| 32308 | 7608E | 40 | 90 | 35.25 | 33 | 27 | 2 | 1.5 | 115.7 | 147.8 | 1.040 |
| 32309 | 7609E | 45 | 100 | 38.25 | 36 | 30 | 2 | 1.5 | 145.3 | 189.4 | 1.400 |
| 32310 | 7610E | 50 | 110 | 42.25 | 40 | 33 | 2.5 | 2 | 117.5 | 236.1 | 1.890 |
| 32311 | 7611E | 55 | 120 | 45.5 | 43 | 35 | 2.5 | 2 | 203 | 271.4 | 2.370 |
| 32312 | 7612E | 60 | 130 | 48.5 | 46 | 37 | 3.0 | 2.5 | 226.7 | 303 | 2.900 |
| 32313 | 7613E | 65 | 140 | 51 | 48 | 39 | 3.0 | 2.5 | 259.6 | 349.8 | 3.510 |
| 32314 | 7614E | 70 | 150 | 54 | 51 | 42 | 3.0 | 2.5 | 298.9 | 408.5 | 4.340 |
| 32315 | 7615E | 75 | 160 | 58 | 55 | 45 | 3.0 | 2.5 | 347.4 | 483.1 | 5.370 |
| 32316 | 7616E | 80 | 170 | 61.5 | 58 | 48 | 3.0 | 2.5 | 387.9 | 543.1 | 6.380 |
| 32317 | 7617E | 85 | 180 | 63.5 | 60 | 49 | 4 | 3.0 | 421.8 | 592.8 | 7.310 |
| 32318 | 7618E | 90 | 190 | 67.5 | 64 | 53 | 4 | 3.0 | 478.3 | 683.3 | 8.810 |
| 32319 | 7619E | 95 | 200 | 71.5 | 67 | 55 | 4 | 3.0 | 516.1 | 737.7 | 10.100 |
| 32320 | 7620E | 100 | 215 | 77.5 | 73 | 60 | 4 | 3 | 600.1 | 872.2 | 13.000 |

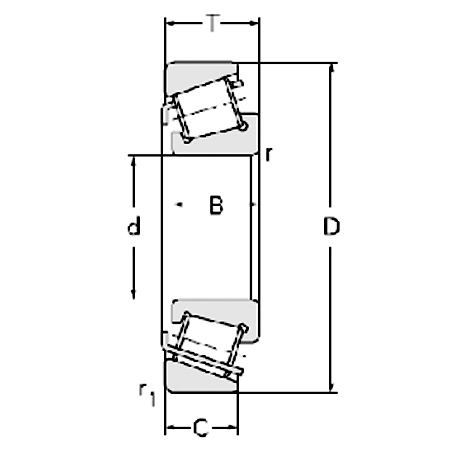

Diagram
